2026 new release ! 5th generation Tri-mode RF/LF meter with super High Sensitivity
ED98Ultra (0.1-8GHz) Tri-mode RF/LF Electrosmog field strength power meter with build-in Gauss meter, Electric Field meter, Frequency counter and Data Logging/Recording/USB interface to PC
10x High sensitivity, high performance Electrosmog meter Support 5G bands
- Check radiation
level for safety
- Identify the signal source
- See the actual Real time signal
waveform in display
with Statistical data of the
detected signal
- Logg/view real time signal data
in LCD Graphic window
- Send data to PC computer
- 5G mobile band Frequency detection,
indicator
- High sensitivity for SBM2024 measurement
- Identify the signal source
- See the actual Real time signal
waveform in display
with Statistical data of the
detected signal
- Logg/view real time signal data
in LCD Graphic window
- Send data to PC computer
- 5G mobile band Frequency detection,
indicator
- High sensitivity for SBM2024 measurement
FEATURES:
Operation mode: Tri-mode of operation
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
- (Electric Field mode): Low frequency Electric field
Frequency range & sensitivity:
- RF mode: 100MHz to 8.0GHz,
-70dBm to +5dBm, 0.004v/m-26v/m, 0.05uw/m2 to 1.8 w/m2
-
Gauss mode: (1)50Hz to 10KHz, (0.1uT to 50uT)/
(1mG to 500mG)
(2)50Hz to 1KHz, (0.01uT to 1uT)/
(0.1mG to 10mG)
- Electric field mode: 50Hz - 50KHz (10v/m to 1000v/m)
Frequency
Display: Build-in
100MHz to 4.2GHz
Real time Frequency
counter , support all- Electric field mode: 50Hz - 50KHz (10v/m to 1000v/m)
5G mobile frequency bands* including the new C-band 3.5GHz.
(*except millimeter wave bands).
Signal
:
Analog
RF(AM/FM) and high speed digital burst RF,
GSM,TDMA,CDMA,PCS,
Wi-Fi 2.4GH, 5.8GHz, WiFi6, WiFi6e, 3.6GHz Ultra-Wide-band, 3G, 4G and
5G mobile frequency bands, 5G C-band 3.5GHz, AC smart meter. AC high
voltage power line, Transformer, Motor, Appliance EMF.
Display
mode:
dBm,
mW/m2, V/m, uT, mGauss, MHzWi-Fi 2.4GH, 5.8GHz, WiFi6, WiFi6e, 3.6GHz Ultra-Wide-band, 3G, 4G and
5G mobile frequency bands, 5G C-band 3.5GHz, AC smart meter. AC high
voltage power line, Transformer, Motor, Appliance EMF.
Display: Graphics LCD multi-digit power level display, moving Histogram, level bar
display, color LED segment display.
Functions: RF field strength power level, LF magnetic field strength, Electric Field
strength,RF signal frequency, Hold, MAX, Peak Average, Whole Average

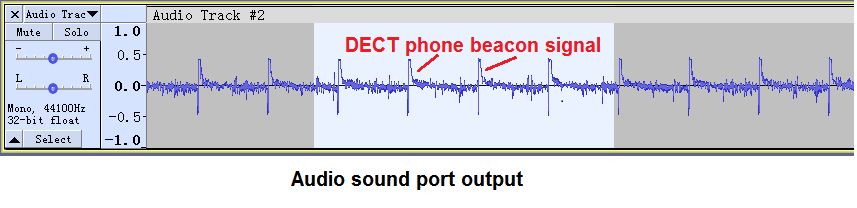

Sound output: Demodulated RF signal audio output for signal sound signature detection
and very low level signal detection. also for analog data logging.
Audio Alarm: Programmable audio alarm output for RF signal level monitoring.
Custom
LED segment display level: Adjustable
color LED segment display threshold
level for different
safety standards, (such as SBM2024
recommendation).Duty cycle: Duty cycle of digital RF pulse signal is displayed in real time.
5G signal
frequency indicator: Detect 5G
mobile band signal, show 5G frequency mark
and
frequency on the display when 5G mobile band signal is detected.
Sampling rate: Ultra fast sampling rate of 25000 times/sec. for modern digital RF pulse
signals, capture very short RF bursts signal down to 100usec (such as
in DECT beacon signal).
Real time waveform & Statistical datawindow: show real-time waveform and Statistical data
of detected signal on the LCDdisplay for radiation safety. Distribution of signal
level in 7 different level bin and average values are displayed based on the
SBM2024 recommendation.
Data Logging : Logg the received signal level and frequency up to 50 Hours or down to
1msec/sample in the meter's memory. excellent for AC Smart meter monitoring,
long survey session and digital RF signal identification such as 5G, Wifi,..etc.,.
Data
Logging view mode: Logged data can be
display and reviewed on the LCD displayfrequency on the display when 5G mobile band signal is detected.
Sampling rate: Ultra fast sampling rate of 25000 times/sec. for modern digital RF pulse
signals, capture very short RF bursts signal down to 100usec (such as
in DECT beacon signal).
Real time waveform & Statistical datawindow: show real-time waveform and Statistical data
of detected signal on the LCDdisplay for radiation safety. Distribution of signal
level in 7 different level bin and average values are displayed based on the
SBM2024 recommendation.
Data Logging : Logg the received signal level and frequency up to 50 Hours or down to
1msec/sample in the meter's memory. excellent for AC Smart meter monitoring,
long survey session and digital RF signal identification such as 5G, Wifi,..etc.,.
graphic window of the meter with moving cursor for signal analysis without the
need to connect to the PC computer.
PC Interface: USB interface port to send the Logged data to PC computer.
Affordable, Pocket size, High performance !

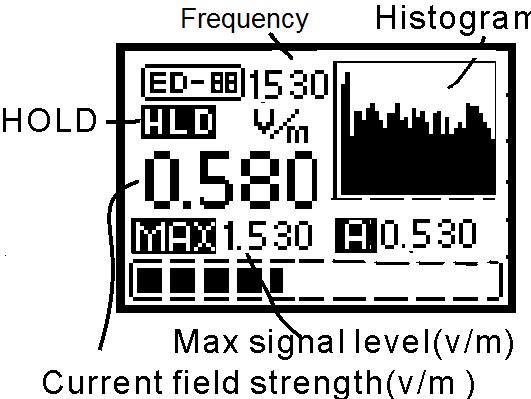

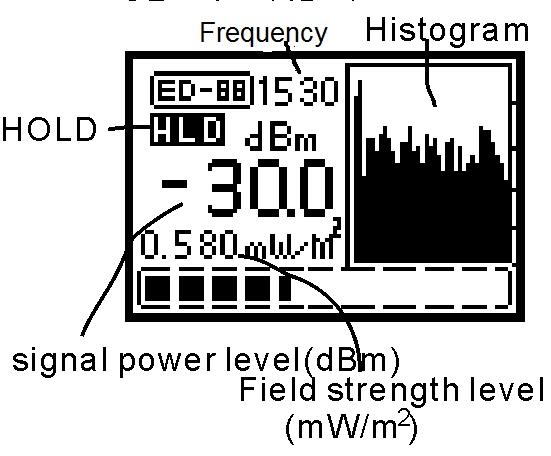

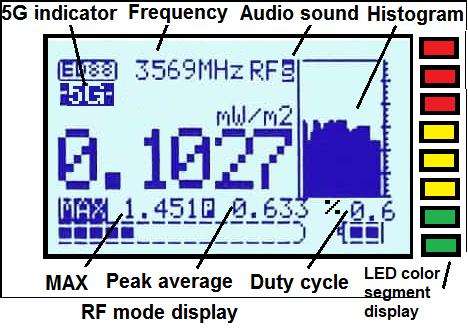

Accurate, Easy to use, Real time LCDdisplay of measured signal
- Signal level display
- Histogram of last 30 measurements
- 5G signal detector/indicator
- Real time signal Frequency display
- Duty cycle of the signal

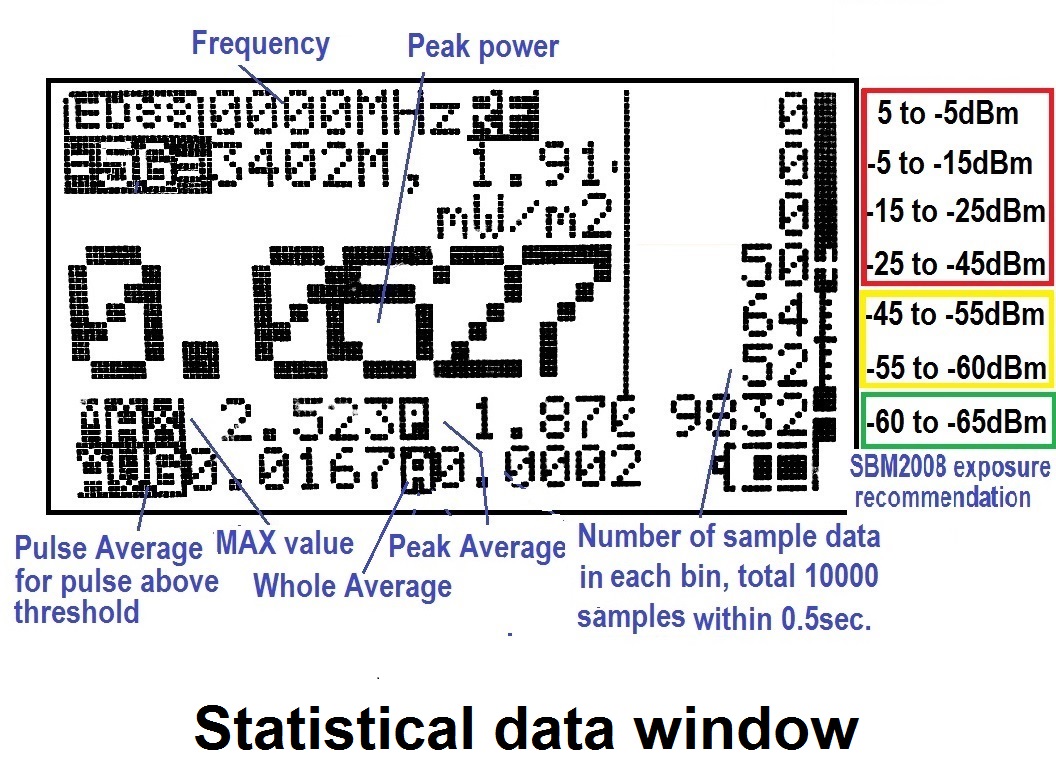

Single button give you the
professional statistical data & real time waveform of signal for your safety
- Statistical data of 25000 sampled data per second
- Show Distribution of signal level based on the SBM2024 safety recommendation in 7 level category
- Average pulse value calculation of all signals higher than the SBM2024 limit
- Display realtime
signal waveform in graphic window of detected
signal, with 42usec/sampling rate and 500usec display
step.
Tri-mode of
operation with Wide bandwidth, High sensitivity,
& Frequency display
- RF mode: 100MHz to 8GHz
- High sensitivity: 0.05uw/m2 to 1.8 w/m2
- LF Gauss meter mode: 0.01uT to 50uT
- LF Electric field mode: 10v/m to 1000v/m
- Real time signal frequency display upto 4.2GHz, covers the 5G mobile bands including 5G C-band
- Wide Frequency coverage (up to 11GHz with reduced sensitivity)

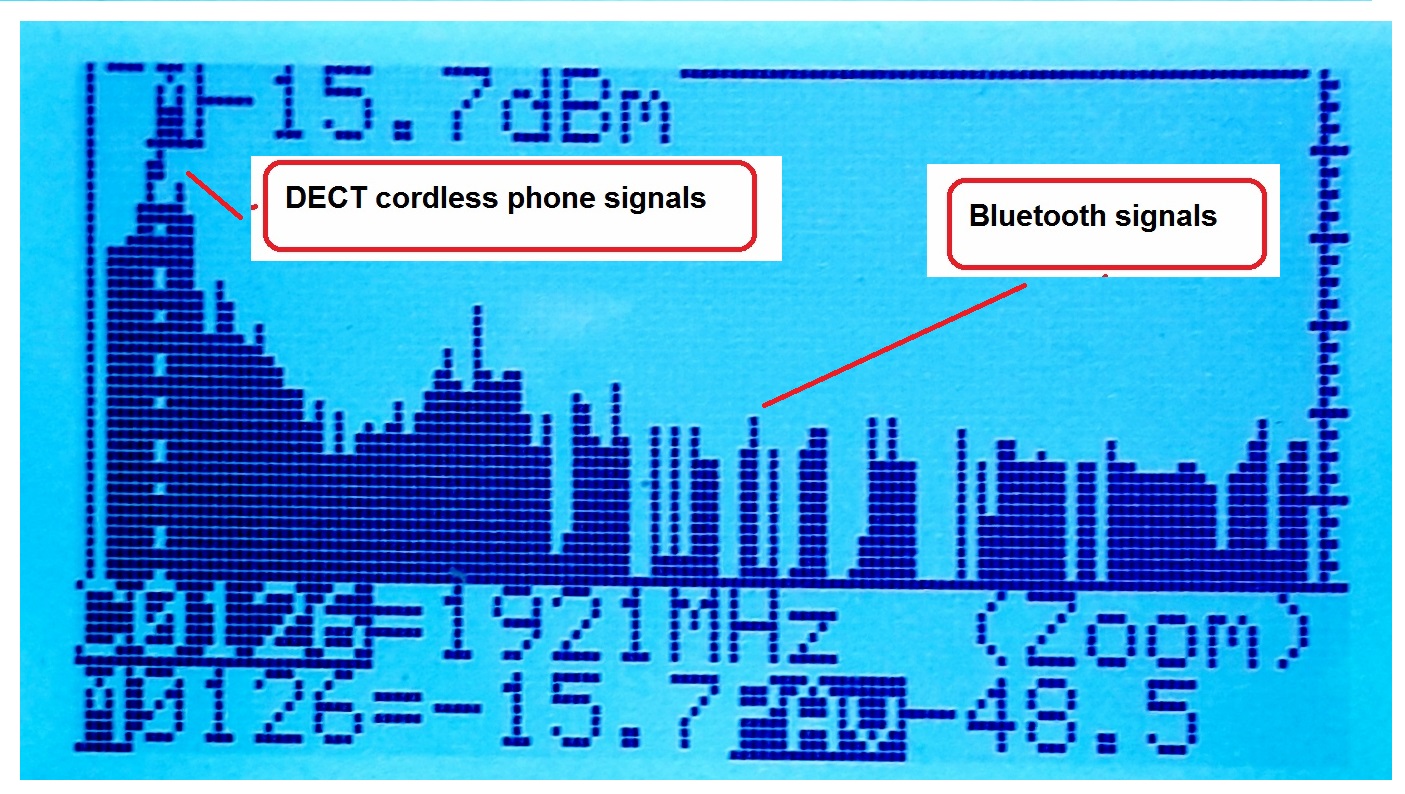

Logging data in
real time or up to 50 Hours or down to 1msec/Logg
time interval automatically and view it on the
meter- Automatically Logging signal level and Frequency of the received signal in meter
- 8min. to 50Hours of data can be stored in meter automatically, excellent for long session of measurements, such as AC smart meter
- Review Logged data on the meter display without connecting to PC computer
- Zoom, move cursor, display data in graphic window of the meter, see the received data by time scale
- Show the Average value within time period by moving cursor (ex. 1min. or 3 min. average value as in safety standard)
- Recording real time signal down to 1ms per Logging interval with frequency for signal identification and analysis of digital RF signals (such as 5G, 4G/LTE, WiFi, Bluetooth, DECT phones)
Connect to USB port of PC computer for Long measurement session and
Final Analysis
- Real time transfer or from meter's memory to PC computer
- Standard Excel data format, no need to convert data
- Free program or use public domain serial program
- Work with PC, iOS, UNIX, or Android devices
- Analyze/Chart the Logged data in Excel program
Manual Download
Download ED98Ultra Data Logging user's guide
Download ED98Ultra user manual
Download USB serial port Driver PC software
Download free PC software (created & courtesy of Envirosens Ltd.,)
Download free iOS and PC software (see Data Logging user's guide for details)
Download free Android devices software (see Data Logging user's guide)

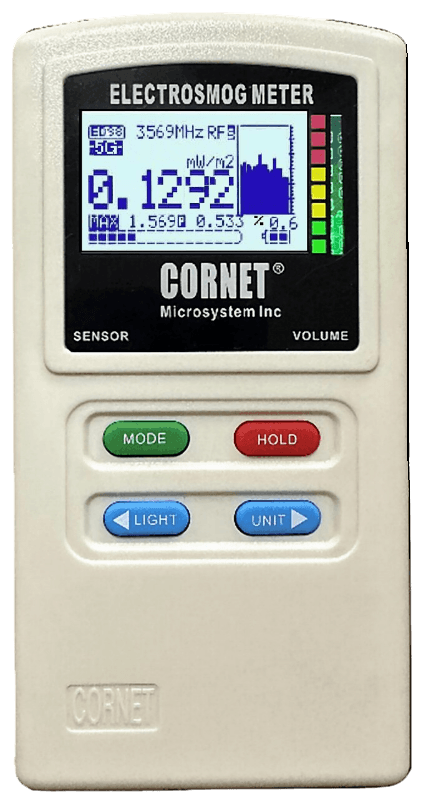

ED98QPro5G (0.1-8GHz) Quad-mode RF/LF Electrosmog field strength power meter with build-in Gauss meter, Electric Field meter, Frequency counter, Light Flicker meter and Data Logging/Recording/USB interface to PC
High
performance, reliable Electrosmog meter Support 5G bands & Light Flicker meter!
- Check radiation
level for safety
- Identify the signal source
- See the actual Real time signal
waveform in display
with Statistical data of the
detected signal
- Logg/view real time signal data
in LCD Graphic window
- Send data to PC computer
- 5G mobile band Frequency detection,
indicator
- Measures Light Flicker of LED lights
- Identify the signal source
- See the actual Real time signal
waveform in display
with Statistical data of the
detected signal
- Logg/view real time signal data
in LCD Graphic window
- Send data to PC computer
- 5G mobile band Frequency detection,
indicator
- Measures Light Flicker of LED lights
FEATURES:
Operation
mode: Quad-mode of operation
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
- (Electric Field mode): Low frequency Electric field
- (Light FLicker mode): Ligh Flicker % rate of visual lights
Frequency range & sensitivity:
- RF mode: 100MHz to 8.0GHz,
-65dBm to +5dBm, 0.008v/m-26v/m, 0.18uw/m2 to 1.8 w/m2
5G mobile frequency bands* including the new C-band 3.5GHz.
(*except millimeter wave bands).
Display: Graphics LCD multi-digit power level display, moving Histogram, level bar
display, color LED segment display.
Functions: RF field strength power level, LF magnetic field strength, Electric Field
strength,RF signal frequency, Hold, MAX, Peak Average, Whole Average
Sound output: Demodulated RF signal audio output for signal sound signature detection
and very low level signal detection. also for analog data logging.
Audio Alarm: Programmable audio alarm output for RF signal level monitoring.
Duty cycle: Duty cycle of digital RF pulse signal is displayed in real time.
graphic window of the meter with moving cursor for signal analysis without the
need to connect to the PC computer.
PC Interface: USB interface port to send the Logged data to PC computer.
Affordable, Pocket size, High performance !
Accurate, Easy to use, Real time LCD
display of measured signal
Single button give you the
professional statistical data & real time waveform of signal for your safety
Quad-mode of
operation with
Wide bandwidth, High sensitivity,
& Frequency display
Light Flicker mode for LED lights and household light fixtures Flicker rate measurement
Manual Download
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
- (Electric Field mode): Low frequency Electric field
- (Light FLicker mode): Ligh Flicker % rate of visual lights
Frequency range & sensitivity:
- RF mode: 100MHz to 8.0GHz,
-65dBm to +5dBm, 0.008v/m-26v/m, 0.18uw/m2 to 1.8 w/m2
-
Gauss mode: (1)50Hz to 10KHz, (0.1uT to 50uT)/
(1mG to 500mG)
(2)50Hz to 1KHz, (0.01uT to 1uT)/
(0.1mG to 10mG)
- Electric field mode: 50Hz - 50KHz (10v/m to 1000v/m)

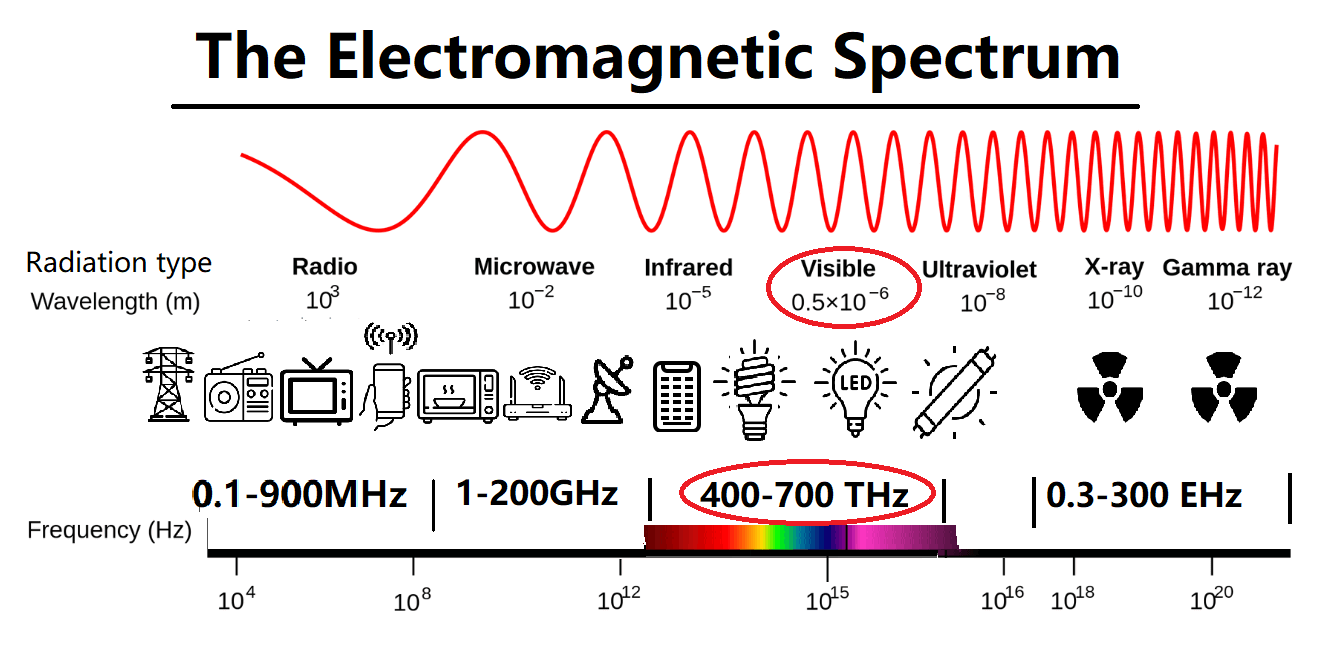

- Light Flicker mode: 400-700THz (400-700nm) visual light flicker rate(0% to 80%)
Frequency
Display: Build-in
100MHz to 4.2GHz
Real time Frequency
counter , support all- Electric field mode: 50Hz - 50KHz (10v/m to 1000v/m)
- Light Flicker mode: 400-700THz (400-700nm) visual light flicker rate(0% to 80%)
5G mobile frequency bands* including the new C-band 3.5GHz.
(*except millimeter wave bands).
Signal
:
Analog
RF(AM/FM) and high speed digital burst RF,
GSM,TDMA,CDMA,PCS,
Wi-Fi 2.4GH, 5.8GHz, WiFi6, WiFi6e, 3.6GHz Ultra-Wide-band, 3G, 4G and
5G mobile frequency bands, 5G C-band 3.5GHz, AC smart meter. AC high
voltage power line, Transformer, Motor, Appliance EMF.
Display
mode:
dBm,
mW/m2, V/m, uT, mGauss, MHzWi-Fi 2.4GH, 5.8GHz, WiFi6, WiFi6e, 3.6GHz Ultra-Wide-band, 3G, 4G and
5G mobile frequency bands, 5G C-band 3.5GHz, AC smart meter. AC high
voltage power line, Transformer, Motor, Appliance EMF.
Display: Graphics LCD multi-digit power level display, moving Histogram, level bar
display, color LED segment display.
Functions: RF field strength power level, LF magnetic field strength, Electric Field
strength,RF signal frequency, Hold, MAX, Peak Average, Whole Average
Sound output: Demodulated RF signal audio output for signal sound signature detection
and very low level signal detection. also for analog data logging.
Audio Alarm: Programmable audio alarm output for RF signal level monitoring.
Custom
LED segment display level: Adjustable
color LED segment display threshold
level for different
safety standards, (such as SBM2008
recommendation).Duty cycle: Duty cycle of digital RF pulse signal is displayed in real time.
5G signal
frequency indicator: Detect 5G
mobile band signal, show 5G frequency mark
and
frequency on the display when 5G mobile band signal is detected.
Sampling rate: Ultra fast sampling rate of 25000 times/sec. for modern digital RF pulse
signals, capture very short RF bursts signal down to 100usec (such as
in DECT beacon signal).
Real time waveform & Statistical datawindow: show real-time waveform and Statistical data
of detected signal on the LCDdisplay for radiation safety. Distribution of signal
level in 7 different level bin and average values are displayed based on the
SBM2008 recommendation.
Data Logging : Logg the received signal level and frequency up to 50 Hours or down to
1msec/sample in the meter's memory. excellent for AC Smart meter monitoring,
long survey session and digital RF signal identification such as 5G, Wifi,..etc.,.
Data
Logging view mode: Logged data can be
display and reviewed on the LCD displayfrequency on the display when 5G mobile band signal is detected.
Sampling rate: Ultra fast sampling rate of 25000 times/sec. for modern digital RF pulse
signals, capture very short RF bursts signal down to 100usec (such as
in DECT beacon signal).
Real time waveform & Statistical datawindow: show real-time waveform and Statistical data
of detected signal on the LCDdisplay for radiation safety. Distribution of signal
level in 7 different level bin and average values are displayed based on the
SBM2008 recommendation.
Data Logging : Logg the received signal level and frequency up to 50 Hours or down to
1msec/sample in the meter's memory. excellent for AC Smart meter monitoring,
long survey session and digital RF signal identification such as 5G, Wifi,..etc.,.
graphic window of the meter with moving cursor for signal analysis without the
need to connect to the PC computer.
PC Interface: USB interface port to send the Logged data to PC computer.
Affordable, Pocket size, High performance !
Accurate, Easy to use, Real time LCDdisplay of measured signal
- Signal level display
- Histogram of last 30 measurements
- 5G signal detector/indicator
- Real time signal Frequency display
- Duty cycle of the signal
Single button give you the
professional statistical data & real time waveform of signal for your safety
- Statistical data of 25000 sampled data per second
- Show Distribution of signal level based on the SBM2008 safety recommendation in 7 level category
- Average pulse value calculation of all signals higher than the SBM2008 limit
- Display realtime
signal waveform in graphic window of detected
signal, with 42usec/sampling rate and 500usec display
step.
Quad-mode of
operation with Wide bandwidth, High sensitivity,
& Frequency display
- RF mode: 100MHz to 8GHz
- High sensitivity: 0.0001mw/m2 to 1.8 w/m2
- LF Gauss meter mode: 0.01uT to 50uT
- LF Electric field mode: 10v/m to 1000v/m
- Light Flicker mode: 0% to 80% Light Flicker rate
- Real time signal frequency display upto 4.2GHz, covers the 5G mobile bands including 5G C-band
- Wide Frequency coverage (up to 11GHz with reduced sensitivity)
Light Flicker mode for LED lights and household light fixtures Flicker rate measurement
- Measure Light Flicker from 400-700THz visual light source
- IEEE1789, UL, EU Safety Standard Percent Light Flicker rate measurement
- Real time Light intensity, Flicker rate and waveform dislay
- Max, min, Average Light intensity level display
- Color LED (Red, Yellow, Green) indication of Light level and the 3%, 8% Flicker rate point of safety standard
- Simple, easy, Point and Measure for fast field measurement
Manual Download
Download
ED98QPro5G
Data Logging user's guide
Download ED98QPro5G user manual
Download USB serial port Driver PC software
Download free PC software (created & courtesy of Envirosens Ltd.,)
Download free iOS and PC software (see Data Logging user's guide for details)
Download free Android devices software (see Data Logging user's guide)
Download ED98QPro5G user manual
Download USB serial port Driver PC software
Download free PC software (created & courtesy of Envirosens Ltd.,)
Download free iOS and PC software (see Data Logging user's guide for details)
Download free Android devices software (see Data Logging user's guide)
ED88TPlus5G2 (0.1-8GHz) Tri-mode RF/LF Electrosmog field strength power meter with build-in Gauss meter, Electric Field meter, Frequency counter and Data Logging/Recording/USB interface to PC
High
performance
!
Support all 5G bands* !
Easy to use !
- Check radiation
level for safety
- Identify the signal source
- See the actual Real time signal
waveform in display
with Statistical data of the
detected signal
- Logg/view real time signal data
in LCD Graphic window
- Send data to PC computer
- 5G mobile band Frequency
indicator
- Identify the signal source
- See the actual Real time signal
waveform in display
with Statistical data of the
detected signal
- Logg/view real time signal data
in LCD Graphic window
- Send data to PC computer
- 5G mobile band Frequency
indicator
FEATURES:
Operation
mode: Tri-mode of operation
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
- (Electric Field mode): Low frequency Electric field
Frequency range & sensitivity:
- RF mode: 100MHz to 8.0GHz,
-65dBm to +5dBm, 0.008v/m-26v/m, 0.18uw/m2 to 1.8 w/m2
5G mobile frequency bands* including the new C-band 3.5GHz.
(*except millimeter wave bands).
Display: Graphics LCD multi-digit power level display, moving Histogram, level bar
display, color LED segment display.
Functions: RF field strength power level, LF magnetic field strength, Electric Field
strength,RF signal frequency, Hold, MAX, Peak Average, Whole Average
Sound output: Demodulated RF signal audio output for signal sound signature detection
and very low level signal detection. also for analog data logging.
Audio Alarm: Programmable audio alarm output for RF signal level monitoring.
Duty cycle: Duty cycle of digital RF pulse signal is displayed in real time.
graphic window of the meter with moving cursor for signal analysis without the
need to connect to the PC computer.
PC Interface: USB interface port to send the Logged data to PC computer.
Manual Download
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
- (Electric Field mode): Low frequency Electric field
Frequency range & sensitivity:
- RF mode: 100MHz to 8.0GHz,
-65dBm to +5dBm, 0.008v/m-26v/m, 0.18uw/m2 to 1.8 w/m2
-
Gauss mode: (1)50Hz to 10KHz, (0.1uT to 50uT)/
(1mG to 500mG)
(2)50Hz to 1KHz, (0.01uT to 1uT)/
(0.1mG to 10mG)
- Electric field mode: 50Hz - 50KHz (10v/m to 1000v/m)
Frequency
Display: Build-in
100MHz to 4.2GHz
Real time Frequency
counter , support all- Electric field mode: 50Hz - 50KHz (10v/m to 1000v/m)
5G mobile frequency bands* including the new C-band 3.5GHz.
(*except millimeter wave bands).
Signal
:
Analog
RF(AM/FM) and high speed digital burst RF,
GSM,TDMA,CDMA,PCS,
Wi-Fi 2.4GH, 5.8GHz, WiFi6, WiFi6e, 3.6GHz Ultra-Wide-band, 3G, 4G and
5G mobile frequency bands, 5G C-band 3.5GHz, AC smart meter. AC high
voltage power line, Transformer, Motor, Appliance EMF.
Display
mode:
dBm,
mW/m2, V/m, uT, mGauss, MHzWi-Fi 2.4GH, 5.8GHz, WiFi6, WiFi6e, 3.6GHz Ultra-Wide-band, 3G, 4G and
5G mobile frequency bands, 5G C-band 3.5GHz, AC smart meter. AC high
voltage power line, Transformer, Motor, Appliance EMF.
Display: Graphics LCD multi-digit power level display, moving Histogram, level bar
display, color LED segment display.
Functions: RF field strength power level, LF magnetic field strength, Electric Field
strength,RF signal frequency, Hold, MAX, Peak Average, Whole Average
Sound output: Demodulated RF signal audio output for signal sound signature detection
and very low level signal detection. also for analog data logging.
Audio Alarm: Programmable audio alarm output for RF signal level monitoring.
Custom
LED segment display level: Adjustable
color LED segment display threshold
level for different
safety standards, (such as SBM2008
recommendation).Duty cycle: Duty cycle of digital RF pulse signal is displayed in real time.
5G signal
frequency indicator: Detect 5G
mobile band signal, show 5G frequency mark
and
frequency on the display when 5G mobile band signal is detected.
Sampling rate: Ultra fast sampling rate of 25000 times/sec. for modern digital RF pulse
signals, capture very short RF bursts signal down to 100usec (such as
in DECT beacon signal).
Real time waveform & Statistical datawindow: show real-time waveform and Statistical data
of detected signal on the LCDdisplay for radiation safety. Distribution of signal
level in 7 different level bin and average values are displayed based on the
SBM2008 recommendation.
Data Logging : Logg the received signal level and frequency up to 50 Hours or down to
1msec/sample in the meter's memory. excellent for AC Smart meter monitoring,
long survey session and digital RF signal identification such as 5G, Wifi,..etc.,.
Data
Logging view mode: Logged data can be
display and reviewed on the LCD displayfrequency on the display when 5G mobile band signal is detected.
Sampling rate: Ultra fast sampling rate of 25000 times/sec. for modern digital RF pulse
signals, capture very short RF bursts signal down to 100usec (such as
in DECT beacon signal).
Real time waveform & Statistical datawindow: show real-time waveform and Statistical data
of detected signal on the LCDdisplay for radiation safety. Distribution of signal
level in 7 different level bin and average values are displayed based on the
SBM2008 recommendation.
Data Logging : Logg the received signal level and frequency up to 50 Hours or down to
1msec/sample in the meter's memory. excellent for AC Smart meter monitoring,
long survey session and digital RF signal identification such as 5G, Wifi,..etc.,.
graphic window of the meter with moving cursor for signal analysis without the
need to connect to the PC computer.
PC Interface: USB interface port to send the Logged data to PC computer.
Manual Download
Download
ED88TPlus5G2
Data Logging user's guide
Download ED88TPlus5G2 user manual
Download USB serial port Driver PC software
Download free PC software (created & courtesy of Envirosens Ltd.,)
Download free iOS and PC software (see Data Logging user's guide for details)
Download free Android devices software (see Data Logging user's guide)
Affordable, Pocket size, High performance !
Download ED88TPlus5G2 user manual
Download USB serial port Driver PC software
Download free PC software (created & courtesy of Envirosens Ltd.,)
Download free iOS and PC software (see Data Logging user's guide for details)
Download free Android devices software (see Data Logging user's guide)
Affordable, Pocket size, High performance !
Accurate, Easy to use, Real time LCD
display of measured signal
- Signal level display
- Histogram of last 30 measurements
- 5G signal indicator
- Real time signal Frequency display
- Duty cycle of the signal
- Color LED segment display of signal level
Three mode of operation with
Wide bandwidth, High sensitivity,
& Frequency display
- RF mode: 100MHz to 8GHz
- High sensitivity: 0.0001mw/m2 to 1.8 w/m2
- LF Gauss meter mode: 0.01uT to 50uT
- LF Electric field mode: 10v/m to 1000v/m
- Real time signal frequency display upto 4.2GHz, covers the 5G mobile bands including 5G C-band
- Wide Frequency coverage (up to 11GHz with reduced sensitivity)
More info ....
Single button give you the
professional statistical data & real time waveform of signal for your safety
- Statistical data of 25000 sampled data per second
- Show Distribution of signal level based on the SBM2008 safety recommendation in 7 level category
- Average pulse value calculation of all signals higher than the SBM2008 limit
- Display realtime
signal waveform in graphic window of detected
signal, with 42usec/sampling rate and 500usec display
step.
Logging data in
real time or up to 50 Hours or down to 1msec/Logg
time interval automatically and view it on the
meter- Automatically Logging signal level and Frequency of the received signal in meter
- 8min. to 50Hours of data can be stored in meter automatically, excellent for long session of measurements, such as AC smart meter
- Review Logged data on the meter display without connecting to PC computer
- Zoom, move cursor, display data in graphic window of the meter, see the received data by time scale
- Show the Average value within time period by moving cursor (ex. 1min. or 3 min. average value as in safety standard)
- Recording real time
signal down to 1ms per Logging
interval with frequency for signal identification and
analysis of digital RF signals (such as 5G, 4G/LTE,
WiFi, Bluetooth, DECT phones)
Connect to USB port of PC computer
for Long measurement session and
Final Analysis
- Real time transfer or from meter's memory to PC computer
- Standard Excel data format, no need to convert data
- Free program or use public domain serial program
- Work with PC, iOS, UNIX, or Android devices
- Analyze/Chart the Logged data in Excel program
More info ....
Audio earphone sound port for
signal identification & recording
- Demodulated RF signal output
- Identify the signal by RF Audio sound signature
- Monitoring very low level RF signal using earphone
- Recording the de-modulated analog signal to PC
audio sound port for realtime analog waveform
recording
New ! ED85EXPlus5 (1MHz-8GHz) RF Electrosmog field strength power meter with External SMA connector, Frequency display, Data Logging/view, 5G mobile frequency indicator, and Statistic data window
10 times higher sensitivity down to -70dBm (0.05uw/m2)
FEATURES: Operation mode: Dual-mode RF power meter with SMA connector
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
Frequency range: 1MHz to 8GHz(SMA direct input)up to 11GHz
* Frequency range for RF field strength measurement is depend on external antenna used
High sensitivity: -65 dBm to +5 dBm, down to -70dBm
Peak Power density: 0.0018mw/m-sq to 0.58 w/m-sq
(up to 0.05uw/m-sq to 1.8 w/m-sq)
(up to 0.008v/m to 26.2v/m)
Dynamic range: 70 dB
Frequency Display: 100MHz to 4.2GHz (support 5G mobile network C-band)
Gauss mode: (1)50Hz to 10KHz (0.1uT to 50uT)/ (1mG to 500mG)
