CORNET
Affordable, Pocket size,
High performance
Electrosmog
field strength power meter products
!
Multi-mode RF meter with Frequency display & Data Logging --
2024 New Release! measures 400-700THz frequency Light Flicker! Quad-mode meter!
ED98QPro5G (0.1-8GHz) Quad-mode RF meter with Frequency display, Real time waveform display & Data Logging --build-in Light Flicker meter and support 5G mobile frequency
ED98QPro5G is a Quad-mode 5th generation of CORNET High performance Electrosmog meter with build-in:
RF Field strength power meter(0.1-8GHz),
LF Magnetic Field Gauss meter,
LF Electric Field meter,
Light Flicker meter (400-700THz visual light)
all in one device.
The Light Flicker meter mode is an excellent tool for measuring the LED light flicker problems in living environment which is known to affect human health and are regulated by the new EU, UL, and IEEE1789 of USA safety standards. easy to use and affortable.
Build-in Frequency counter, support all 5G mobile frequency bands. with 5G signal frequency detector/indicator, Realtime signal waveform display & Statistical data Logging of the received signal
Features:
ED88TPlus5G2(0.1-8GHz) Tri-mode RF meter with Frequency display, Real time waveform display & Data Logging --support 5G mobile frequency
ED88TPlus5G2 is a 4th generation of ED88TPlus series High performance Tri-mode Electrosmog meter with build-in RF Field strength power meter, LF Gauss meter, and LF Electric Field meter.
Build-in Frequency counter, support all 5G mobile frequency bands. with 5G signal frequency indicator,
Data Logging capability, record and view the Logged Data in graphic window on the meter's LCD display. send data through USB interface to PC for analysis.
The Realtime signal waveform display & Statistical data of the received signal is collected and displayed on the LCD display.
Features:
ED85EXPlus5G (0.1-8GHz) (1MHz-8GHz) RF Electrosmog field strength power meter with External SMA connector, Frequency display, Data Logging/view, 5G mobile frequency indicator, and Statistic data window
10 times higher sensitivity down to -70dBm (0.05uw/m2)
FEATURES:
Operation mode: Dual-mode RF power meter with SMA connector
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
Frequency range: 1MHz to 8GHz(SMA direct input)up to 11GHz
* Frequency range for RF field strength measurement is depend on external antenna used
High sensitivity: -65 dBm to +5 dBm, down to -70dBm
Peak Power density: 0.0018mw/m-sq to 0.58 w/m-sq
(up to 0.05uw/m-sq to 1.8 w/m-sq)
(up to 0.008v/m to 26.2v/m)
Dynamic range: 70 dB
Frequency Display: 100MHz to 4.2GHz (support 5G mobile network C-band)
Gauss mode: (1)50Hz to 10KHz (0.1uT to 50uT)/ (1mG to 500mG)
(2)50Hz to 1KHz (0.01uT to 1uT)/ (0.1mG to 10mG)
Signal : Analog RF(AM/FM) and high speed
Digital burst RF (GSM, TDMA, CDMA,
PCS,Wi-Fi, 3G, 4G, 5G(sub-6GHz, C-band), AC smart meter
Display: Graphics LCD multi-digit power level display, moving Histogram,
level bar display, color LED segment.
Function: RF power level, hold, Max,LCD back light
Data Logging: Integrated Data Logging, Logged data view, Statistic Data window, and USB interface to PC computer
Power supply: 9V DC battery (not included)
ED88T (0.1-8GHz) Tri-mode RF/LF Electrosmog field strength power meter with build-in Gauss meter, Electric Field meter and Frequency display
-
Super wide bandwidth (100MHz-8GHz)
-RF field strength power measurement
-Build-in Antenna
-WiMAX, GSM, EMF, WiFi, AC smart meter radiation,
3G/4G phone, DECT, CDMA, mobile base station.
- Tri-mode :
RF field strength, LF Gauss meter, and LF Electric field meter
- Build-in Frequency display (100MHz-2.7Ghz)
-Ultra fast frequency counting of on air digital RF
burst signals from GSM, DECT, Wifi, Bluetooth,
3G/4G and wireless devices. capture very short
bursts down to 100usec.
- Show Both Signal level and Frequency
- High sensitivity, -60dBm to +5dBm
8GHz RF meter with Frequency meter series --
MD18 -(100Mhz-8GHz) RF power meter with Frequency meter function
-
Super wide bandwidth (100MHz-8GHz)
-RF field strength power measurement
-Build-in Antenna
-WiMAX, GSM, EMF, WiFi, AC smart meter radiation,
3G/4G phone, DECT, CDMA, mobile base station.
- Build-in Frequency meter (100MHz-2.4Ghz)
-Ultra fast frequency counting of on air digital RF
burst signals from GSM, DECT, Wifi, Bluetooth,
3G/4G and wireless devices. capture very short
bursts down to 100usec.
- Show Both Signal level and Frequency
- High sensitivity, -60dBm to +5dBm
- Compact size 14cmx6.5xcmx3cm
- use two 1.5V AA size battery
Multi-mode RF meter with Frequency display & Data Logging --
2024 New Release! measures 400-700THz frequency Light Flicker! Quad-mode meter!
ED98QPro5G (0.1-8GHz) Quad-mode RF meter with Frequency display, Real time waveform display & Data Logging --build-in Light Flicker meter and support 5G mobile frequency
ED98QPro5G is a Quad-mode 5th generation of CORNET High performance Electrosmog meter with build-in:
RF Field strength power meter(0.1-8GHz),
LF Magnetic Field Gauss meter,
LF Electric Field meter,
Light Flicker meter (400-700THz visual light)
all in one device.
The Light Flicker meter mode is an excellent tool for measuring the LED light flicker problems in living environment which is known to affect human health and are regulated by the new EU, UL, and IEEE1789 of USA safety standards. easy to use and affortable.
Build-in Frequency counter, support all 5G mobile frequency bands. with 5G signal frequency detector/indicator, Realtime signal waveform display & Statistical data Logging of the received signal
Features:
- Quad-mode :RF field strength, LF Gauss, LF Electric field, and Light Flicker meter mode
- Build-in
wideband Antenna
- Wide bandwidth (0.1-8GHz), High sensitivity down to 0.1uw/m2
- Build-in
Real time Frequency counter (100MHz-4.2Ghz)
- Support WiFi, 3G/4G phone, DECT, CDMA, 5G mobile, WiFi-6, WiMAX, GSM, Bluetooth, AC smart meter, Ham radio and IoT wireless devices.
- Ultra fast sampling rate 25000 times/sec. for modern digital RF pulse signals
- Capture very short RF bursts signal down to 100usec.
- Support
all 5G frequency bands* including the new 5G
C-band 3.5GHz
- 5G
frequency indicator for 5G mobile band signals,
Statistical data of
detected signal on LCD display for SBM2008
recommendation.
- Show
Both Signal level and Frequency of detected
signal

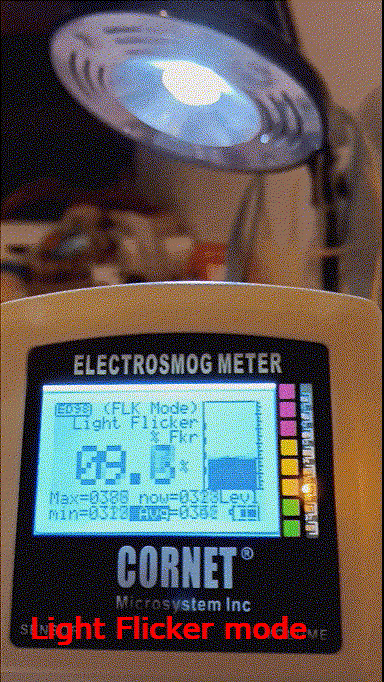

- Light Flicker percent measurement for LED lights and other light fixtures
- Data
Logging/Recording for up to 50 hours of signal
data
- USB
Interface to PC computer
- High
sensitivity,
-65dBm to +5dBm, 0.1uw/m2-1.8w/m2,
0.008v/m-26.2v/m

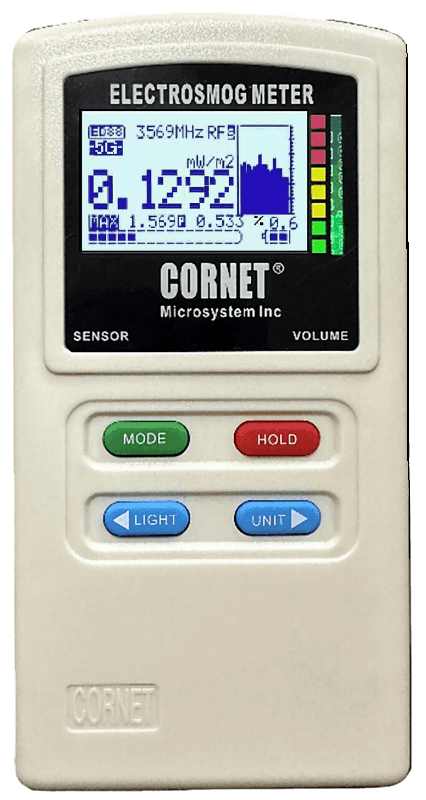

ED88TPlus5G2(0.1-8GHz) Tri-mode RF meter with Frequency display, Real time waveform display & Data Logging --support 5G mobile frequency
ED88TPlus5G2 is a 4th generation of ED88TPlus series High performance Tri-mode Electrosmog meter with build-in RF Field strength power meter, LF Gauss meter, and LF Electric Field meter.
Build-in Frequency counter, support all 5G mobile frequency bands. with 5G signal frequency indicator,
Data Logging capability, record and view the Logged Data in graphic window on the meter's LCD display. send data through USB interface to PC for analysis.

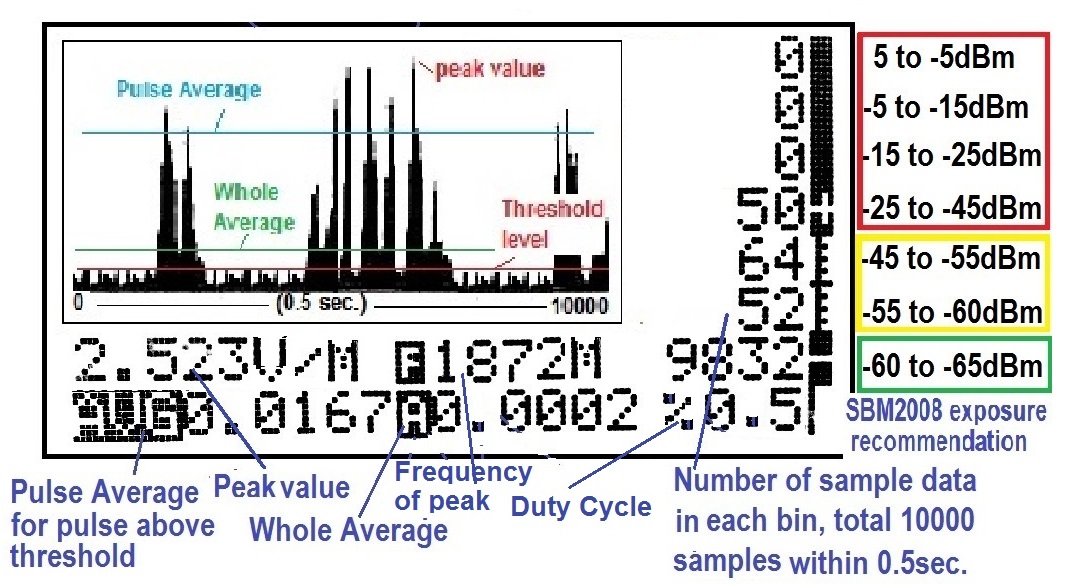

The Realtime signal waveform display & Statistical data of the received signal is collected and displayed on the LCD display.
Features:
- Tri-mode : RF field strength, LF Gauss, LF Electric field meter
- Build-in
wideband Antenna
- Wide bandwidth (0.1-8GHz), High sensitivity down to 0.1uw/m2
- Build-in
Real time Frequency counter (100MHz-4.2Ghz)
- Support WiFi, 3G/4G phone, DECT, CDMA, 5G mobile, WiFi-6, WiMAX, GSM, Bluetooth, AC smart meter, Ham radio and IoT wireless devices.
- Ultra fast sampling rate 25000 times/sec. for modern digital RF pulse signals
- Capture very short RF bursts signal down to 100usec.
- Support
all 5G frequency bands* including the new 5G
C-band 3.5GHz
- 5G
frequency indicator for 5G mobile band signals,
Statistical data of
detected signal on LCD display for SBM2008
recommendation.
- Show
Both Signal level and Frequency of detected
signal
- Data
Logging/Recording for up to 50 hours of signal
data
- USB
Interface to PC computer
- High
sensitivity,
-65dBm to +5dBm, 0.1uw/m2-1.8w/m2,
0.008v/m-26.2v/m
ED85EXPlus5G (0.1-8GHz) (1MHz-8GHz) RF Electrosmog field strength power meter with External SMA connector, Frequency display, Data Logging/view, 5G mobile frequency indicator, and Statistic data window
10 times higher sensitivity down to -70dBm (0.05uw/m2)
FEATURES: Operation mode: Dual-mode RF power meter with SMA connector
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
Frequency range: 1MHz to 8GHz(SMA direct input)up to 11GHz
* Frequency range for RF field strength measurement is depend on external antenna used
High sensitivity: -65 dBm to +5 dBm, down to -70dBm
Peak Power density: 0.0018mw/m-sq to 0.58 w/m-sq
(up to 0.05uw/m-sq to 1.8 w/m-sq)
(up to 0.008v/m to 26.2v/m)
Dynamic range: 70 dB
Frequency Display: 100MHz to 4.2GHz (support 5G mobile network C-band)
Gauss mode: (1)50Hz to 10KHz (0.1uT to 50uT)/ (1mG to 500mG)
(2)50Hz to 1KHz (0.01uT to 1uT)/ (0.1mG to 10mG)
Signal : Analog RF(AM/FM) and high speed
Digital burst RF (GSM, TDMA, CDMA,
PCS,Wi-Fi, 3G, 4G, 5G(sub-6GHz, C-band), AC smart meter
Display: Graphics LCD multi-digit power level display, moving Histogram,
level bar display, color LED segment.
Function: RF power level, hold, Max,LCD back light
Data Logging: Integrated Data Logging, Logged data view, Statistic Data window, and USB interface to PC computer
Power supply: 9V DC battery (not included)
ED88T (0.1-8GHz) Tri-mode RF/LF Electrosmog field strength power meter with build-in Gauss meter, Electric Field meter and Frequency display
-
Super wide bandwidth (100MHz-8GHz)
-RF field strength power measurement
-Build-in Antenna
-WiMAX, GSM, EMF, WiFi, AC smart meter radiation,
3G/4G phone, DECT, CDMA, mobile base station.
- Tri-mode :
RF field strength, LF Gauss meter, and LF Electric field meter
- Build-in Frequency display (100MHz-2.7Ghz)
-Ultra fast frequency counting of on air digital RF
burst signals from GSM, DECT, Wifi, Bluetooth,
3G/4G and wireless devices. capture very short
bursts down to 100usec.
- Show Both Signal level and Frequency
- High sensitivity, -60dBm to +5dBm
8GHz RF meter with Frequency meter series --
MD18 -(100Mhz-8GHz) RF power meter with Frequency meter function
-
Super wide bandwidth (100MHz-8GHz) -RF field strength power measurement
-Build-in Antenna
-WiMAX, GSM, EMF, WiFi, AC smart meter radiation,
3G/4G phone, DECT, CDMA, mobile base station.
- Build-in Frequency meter (100MHz-2.4Ghz)
-Ultra fast frequency counting of on air digital RF
burst signals from GSM, DECT, Wifi, Bluetooth,
3G/4G and wireless devices. capture very short
bursts down to 100usec.
- Show Both Signal level and Frequency
- High sensitivity, -60dBm to +5dBm
- Compact size 14cmx6.5xcmx3cm
- use two 1.5V AA size battery
8GHz bandwidth series --
ED85EXS -(1Mhz-8GHz) RF power meter with Sound signature function and SMA connector
-Super wide bandwidth (1MHz-8GHz)
RF field strength power measurement
- External SMA connector
-direct connection to RF signal sources,
-External Antenna
-5.8GHz WLAN measurement
-UWB ultra wideband signals
- High sensitivity, -65dBm to +5dBm
- Sound signature function (ED85EXS)
RF/LF Dual mode meter series -- with build-in Gauss meter
ED78S/ED178S-RF/LF Electrosmog field strength power meter (100Mhz-8Ghz) with build-in LF Gauss meter function (0.1mG-600mG)
and Sound signature function !
FEATURESOperation mode: Dual mode of operation
- (RF mode): High frequency RF Broadband
- (Gauss mode): Low frequency Magnetic field
Frequency range & sensitivity:
(RF mode): 100MHz to 8.0GHz
-60dBm to +5dBm, 14mv/m-26v/m,
0.5uw/m-sq to 1.8 w/m-sq
(Gauss mode):
(1) 50Hz to 10KHz (0.1uT to 50uT)/
(1mG to 500mG)
(2) 50Hz to 1KHz (0.01uT to 1uT)/
(0.1mG to 10mG)
Signal : Analog RF(AM/FM) and high speed digital burst
RF, GSM,TDMA,CDMA,PCS,Wi-Fi 2.4GH, 5.8GHz,
3.6GHz WiMAX, 3 - 6GHz Ultra-Wide-band, 3G,
4G and AC smart meter. AC power line,
Transformer, Motor, Appliance EMF
Display mode: dBm, mW/m2, V/m, and uT, mGauss
Display: Graphics LCD multi-digit power level display,
moving Histogram, level bar display, color LED
segment.
Function: RF power level, LF magnetic field strength,
Hold, MAX,Average, Sound output, audio Alarm
function. Calibration correction
ED25G-RF/LF Electrosmog field strength power meter (100Mhz-3Ghz) with build-in LF Gauss meter function !
Electrosmog meter with build-in Spectrum Analyzer --
ED15SA -RF Electrosmog field strength power meter (100Mhz-3Ghz) with build-in 2.4GHz band Spectrum Analyzer!
Ultimate tool for both:
-Br
oadband(100MHz-3GHz) RF field strengthpower measurement: WiMAX, GSM, EMF, WiFi, AC smart
meter radiation, 3G/4G phone
- Frequency spectrum analysis for 2.4GHz band
wireless systems: WiFi WLAN, Bluetooth, Security
system, DECT, cordless phones, Zigbee....
Unique, hand held digital LCD graphics display
spectrum analyzer for 2.4GHz band wireless
systems, such as WiFi WLAN, Bluetooth, Security
system, cordless phones, Zigbee....
